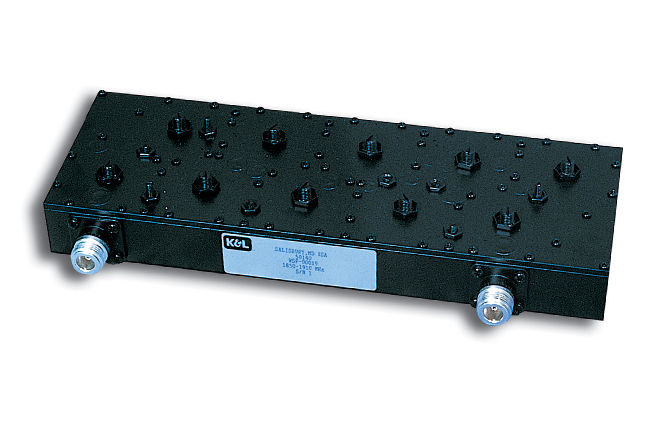

WSF-00019

Overview

Compact, Low Profile Design
Low Insertion Loss; <0.7 dB typical
Full Band, Highly Selective Performance
Wide Operating Temperature Range

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss	Rejection			Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
1850 - 1910 MHz	1.0 dB max.	DC - 1830 MHz	1930 - 2500 MHz	2500 - 6000 MHz	16 dB min.	0°C to +50°C	-40°C to +85°C	0 to 90%(Non-condensing)	10”W x 3.46”D x 1.6”H[254 x 87.9 x 40.6mm]	N-F
		80 dB min.	80 dB min.	28 dB min.
