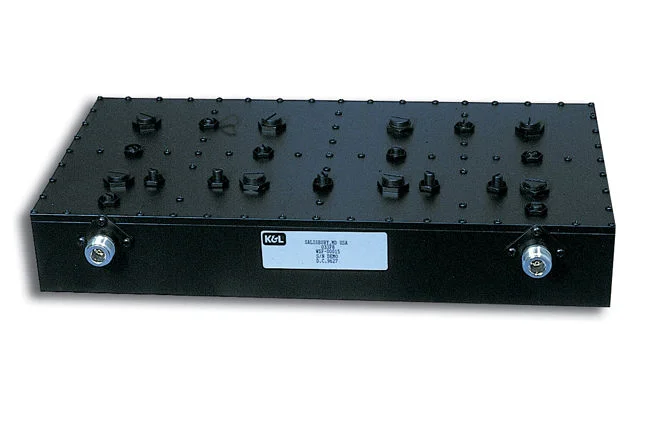

WSF-00015

Overview

Product Name: WSF-00015

Excellent Selectivity - 37 dB minimum @ 2 MHz from Passband Edges
Low Insertion Loss - 1 dB typical
Temperature Stabilized - Holds
Specifications at Thermal Extremes

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Passband

Passband Insertion Loss

Passband Return Loss

Rejection

Dimensions

Connectors

Operating Temperature

Operating Humidity

Storage Temperature

824-835 MHz maximum

1.75 dB maximum

15 dB minimum

DC-790 MHz

790-806 MHz

806-816 MHz

816-822 MHz

837-843 MHz

843-853 MHz

853-869 MHz

869-2000 MHz

12.76”W x 6.46” D x 2.75”H
(excluding connectors) [324.1 x 164.1 x 69.9mm]

N-F
N-F
N-F

0 to +50°C

0-95%

-40 to +70°C

75 dB minimum

60 dB minimum

45 dB minimum

37 dB minimum

45 dB minimum

60 dB minimum

75 dB minimum
