WSF-00009


MPG_KL_BP_F_Cavity_WSF-00009

Overview

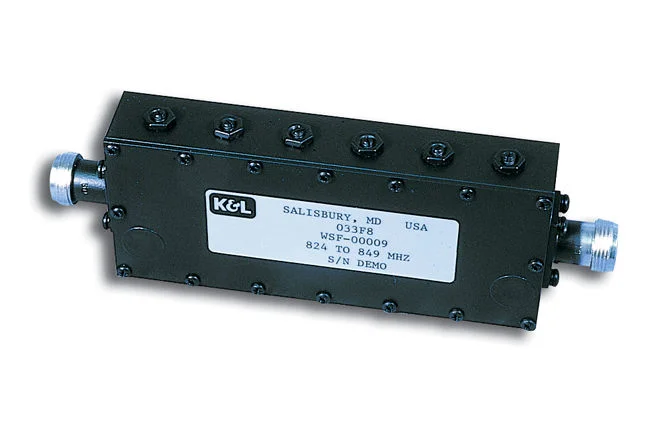

Product Name : WSF-00009

  • Passband: 824-849 MHz
  • Low Insertion Loss - <1.5 dB typical
  • Compact, Low Profile Design
  • Wide Operating Temperature Range
  • Low Insertion Loss - <1.5 dB typical
  • Compact, Low Profile Design
  • Wide Operating Temperature Range
MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

MPG_Connecting_Protecting

Product Specifications

Passband Passband Insertion Loss Rejection Passband Return Loss Operating Temperature Storage Temperature Operating Humidity Dimensions Connectors
 824-849 MHz  2.0 dB max DC-795 MHz 869-2000 MHz  14 dB min.  -25° to +70°C -40°C to +85°C 0 to 90%,
Non-condensing
4.81”W x 2.5”D x 1.0”H
(excluding connectors): [122.2 x 63.5 x 25.4mm]
 N-F
60 dB min 60 dB min
