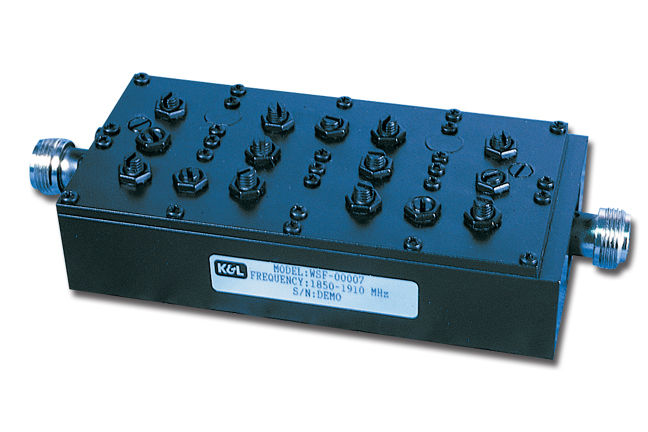

WSF-00007

Overview

Compact, Low Profile Design
Low Insertion Loss, <0.7 dB typical
Fullband, Highly Selective Performance
Wide Operating Temperature Range

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss	Rejection:			Passband Return Loss	Operating Temperature	Storage Temperature	Operating Humidity	Dimensions(excluding connectors)	Connectors
1850-1910 MHz	1.0 dB maximum	DC-1825 MHz	1930-4000 MHz 60 dB minimum	4000-6000 MHz	15 dB minimum	-25 to +70°C	-40 to +85°C	0 to 90%(non-condensing)	4.79”W x 2.32”D x 1.5”H[121.7 x 58.9 x 38.1mm]	N-F
		60 dB minimum	60 dB minimum	40 dB minimum
