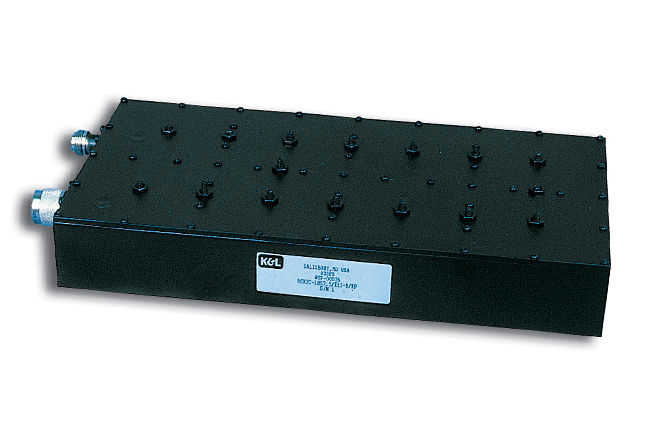

WSF-00003

Overview

PCS Band Specific
Increased Rejection of Adjacent Channels
Temperature Stabilized
Holds Specifications at Thermal Extremes
Stopband Rejection to 4000 MHz

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Passband	Passband Insertion Loss		Rejection				Passband Return Loss	Operating Temperature
1850 - 1865 MHz	1851 - 1864 MHz	1850 - 1851 & 1864 - 1865 MHz	DC - 1785 MHz	1785 - 1848.35 MHz	1866.65 - 1930 MHz	1930 - 4000 MHz	14 dB min.	0°C to +50°C
1850 - 1865 MHz	2 dB max.	4 dB max.	80 dB min.	28 dB min.	28 dB min.	80 dB min.	14 dB min.	0°C to +50°C

Storage Temperature	Operating Humidity	Dimensions (excluding connectors)	Connectors		WSF-00026
-40°C to +70°C	0 to 90%,Non-condensing	11.32”W x 5.74”D x 2.0”H [287.5 x 145.8 x 50.8mm]	Input	Output	Input	Output
			N-F	SMA-F	N-M	N-F
