WSA-00016


MPG_KL_BP_F_Cavity_WSF-00016

Overview

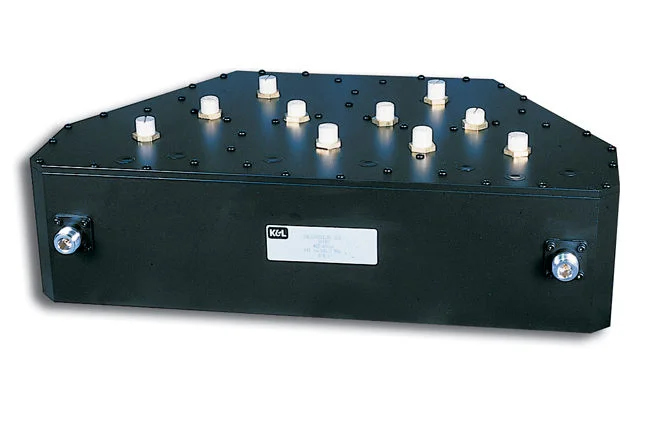

Product Name : WSA-00016

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

MPG_Modular_Badge-140x100

MODULAR

MPG_SWaP_Badge-140x100

SWaP

MPG_Custom_Design_Badge-140x100

CUSTOM DESIGN

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

DefenseAerospaceCommunicationsGPS

MPG_Connecting_Protecting

Product Specifications

Passband Passband Insertion Loss Passband Return Loss Rejection Operating Temperature Storage Temperature Operating Humidity Dimensions Connectors
824-835 MHz,
845-846.5 MHz
1.9 dB max. 15 dB min. DC-790 MHz 790-806 MHz 806-816 MHz 816-822 MHz 837-844.2 MHz 847.3-851 MHz 851-869 MHz 869-1000 MHz 0 to +50°C -40 to +70°C 0 to 90%,
Non-condensing
19” [482.6mm] rack panel x 3U rack height x 20”D [508mm] N-F
75 dB min. 60 dB min. 45 dB min. 37 dB min. 37 dB min. 37 dB min. 45 dB min. 75 dB min.
