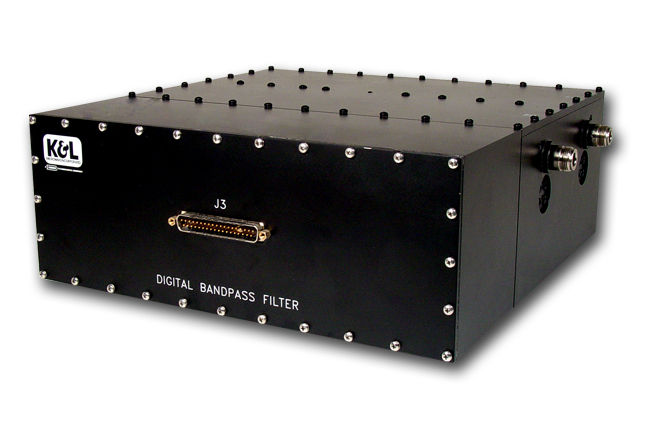

D2HBTM-85/165-0.5-N/N-BRI

Overview

Narrow 3 dB BW / High "Q", Low Loss
Digitally Controlled
Drive Voltages Include 12 VDC, 24 VDC, and 110 VAC
Ruggedized Package Designed for Mobile Environments
See List of Available Remote Interfaces

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Tuning Range	Insertion Loss	VSWR	Impedance	3dB BW	Shape Factor (30dB to 3dB)	Typ.	Control Logic	RF Power Handling	RF Connectors	Operating Temperature	Storage Temperature
85 to 165 MHz	1.8 dB Max.	1.5:1 Max.	50 Ohms	0.5% Fo Typ.	7.0:1 Max, 6.5:1		RS-422 (Others available)	50 Watts Average,200 Watts Peak	Type “N”, Female	-20 to 45 deg C	-40 to 70 deg C

Tuning Time (Entire Range)	Tuning Accuracy:	Drive Voltage:	Humidity	EMC / EMI Intent	Size
7 Seconds Typ, 10 Seconds Max	25 KHz Typ, 50 KHz Max	28 VDC, (Others available)	85% Operating, 95% Storage	Mil-Std-461	12.02”L x12.42”W x 4.84”H (305.3 x 315.5 x 123mm)
