9CSP50-00003

Overview

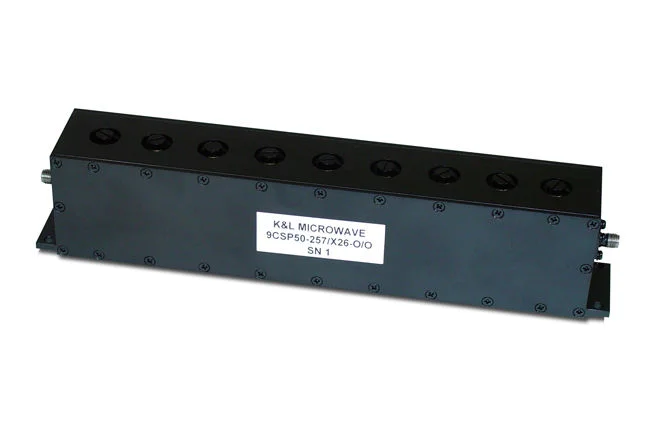

Product Name:9CSP50-00003
High Selectivity
Greater than 90 dB Ultimate Rejection
Low Passband Insertion Loss
Excellent Return Loss

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Center Frequency	Passband	Passband Insertion Loss	Rejection	Dimensions
257 MHz	244 to 270 MHz	2.0 dB (< 1.0 dB @ f 0 )	80 dB @ 210 - 229 MHz & 285 - 400 MHz	8.5” x 1.5” x 2.0”
