6FVSP-1622.375/X8.25-NP/N

Overview

Product SKU ID:

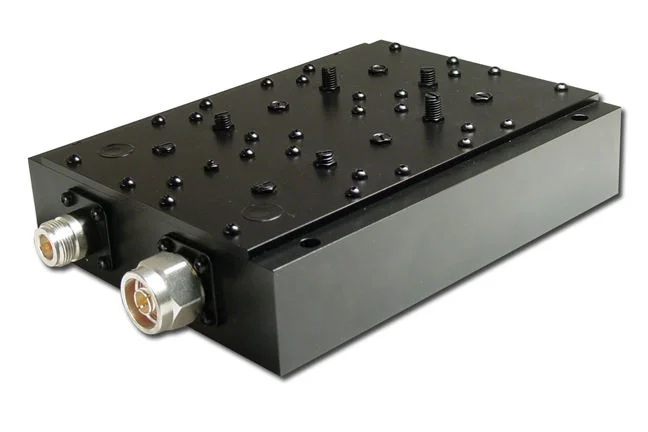

Product Name : 6FVSP-1622.375/X8.25-NP/N
Standard Iridium Bandpass Filter
Low Passband Loss
Small Compact Mechanical
High Reject Band Isolation
Choice of SMA, N, or TNC Male and Female Connectors

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links

Markets

Defense Aerospace Communications GPS

Product Specifications Section

Center Frequency	Passband Loss:		VSWR	Rejection
1622.375 MHz	Center Frequency	1618.25 - 1626.5 MHz	1.5:Typical	1616.375 MHz	1628.375 MHz
1622.375 MHz	1622.375 MHz	3.7 dB max.	1.5:Typical	40 dB min.	40 dB min.
