10CSP-305/X29-O/O

K&L Microwave Helical Resonator Filter (Cross Coupled, High Power ) Helical Resonator Filter (Cross Coupled, High Power )

Overview

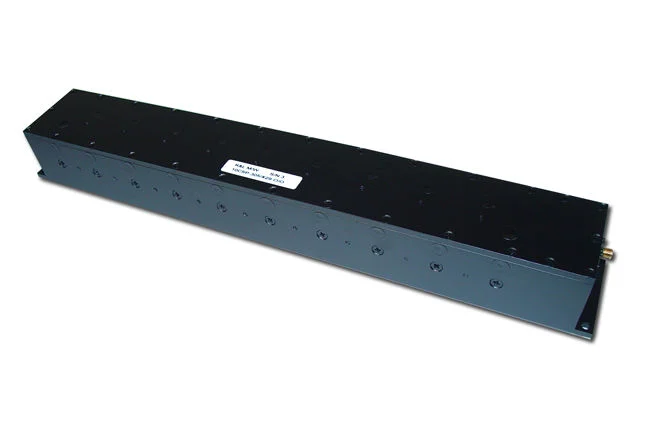

Product Name: 10CSP-305/X29-O/O
High "Q"
Less Than 3% Bandwidth
Low Loss
Passband Power Level of 200 watts CW
Low Passive Intermodulation Products
Out-of-Band Rejection of 110 dB
Shock and Vibration Performance to MIL-STD 810

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Applications

Because K&L RF Cavity Filters are tailored to end-user specifications and needs, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS

Product Specifications

Center Frequency	Passband Loss 292 to 320 MHz	Passband Return Loss	Phase Matching Filter to Filter	Operating Temperature	Dimensions:		Stopband
						DC to 242MHz	242 to 270MHz	345 to 750 MHz	1000 to 1700 MHz
305 MHz	1.5dB max.	15dB min.	20 deg max	+15°C to +35°C	16.0” x 2.2” x 2.0” approx.	55dB min	110dB min.	90dB min.	35dB min.
