Waveguide Fixed Low Pass Filters

Overview

MPG designs and manufactures packaged and custom RF Waveguide filters. All MPG's RF Waveguide filters can be manufactured for lower quantities. L band, S band, C band, X band, Ku band, K band, Ka band and V band in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 1 GHz to 67 GHz

Bandwidth: 0.1% to 20%

Find Products Catalog

About The Technology

Waveguide

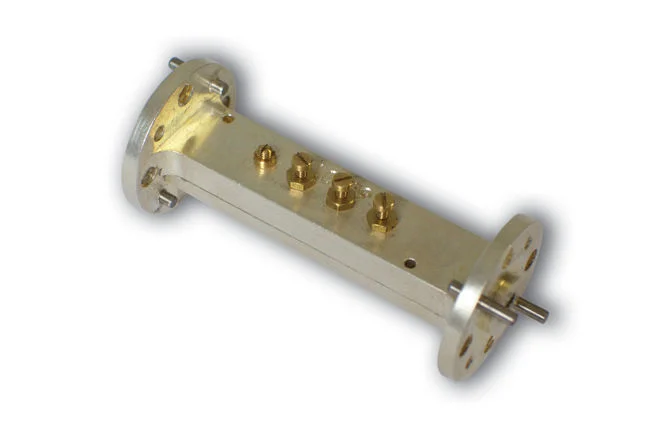

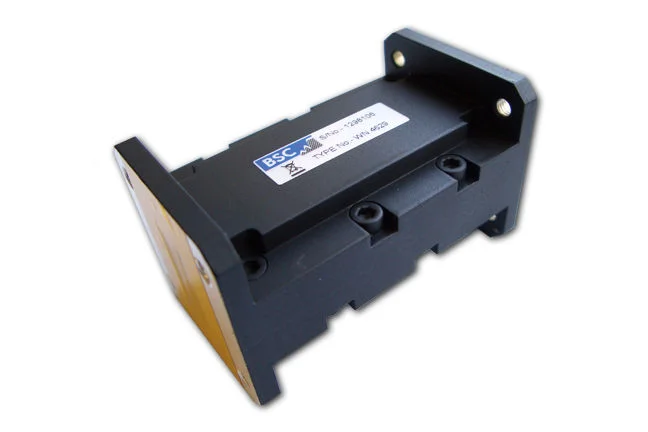

Construction of our RF Waveguide filters consists of half wavelength chambers, separated by inductive irises. Posts are soldered to the waveguide at both the top and the bottom to appropriately propagate electromagnetic energy. Our RF Waveguide filters are available in both rectangular and circular modes.

Rectangular mode filters are designated in the TE 101 mode from 2.5 to 94 GHz. Circular mode Waveguide filters are TE111 mode filters, fitting bandwidths from 0.1 to 1.8%.

Product Inquiry

Featured Brands

K&L Microwave

BSC

Features & Specifications

RF Waveguide filter frequency: L band, S band, C band, X band, Ku band, K band, Ka band and V band from 1 GHz to 67 GHz.

RF Waveguide filter features: Microwave Waveguide filters are available in bandwidths from .1% to 20%, in low loss configurations of 2 to 20 sections. Filters are available in a Q range of ~25K @ 1 GHZ to 2500 @25 GHz+. Connectorized and waveguide flange mounts are available. Waveguide filters come in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Whether you’re choosing one of MPG’s packaged or custom designs, RF Waveguide filters can fit a range of narrow band, high frequency applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
