Thin Film Fixed Band Reject Filters

Overview

Our extensive industry experience and engineering capabilities allow us to customize Thin Film Filters within a highly repeatable design. The result is excellent temperature stability, low loss and consistent performance at a lower cost than most competitors.

S band, C band, X band, Ku band, K band, Ka band, V band in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 3 GHz to 50 GHz

Bandwidth: 3% to 70%

Find Products Catalog

About The Technology

Thin Film

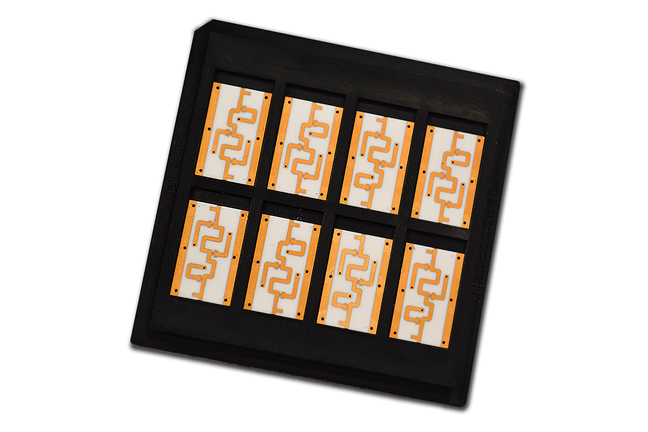

Thin Film Filters are the smallest of the MPG filter line, able to minimize interference due to a unique construction method. Thin Film Filters are printed on a high dielectric material, such as ceramic, enabling a compact product with strong selectivity and out of band rejection.

Product Inquiry

Featured Brands

K&L Microwave

BSC

Features & Specifications

Thin Film Filter frequency: S band, C band, X band, Ku band, K band, Ka band, V band from 3 GHz to 50 GHz.

Frequency: Thin Film Filter frequency: S band, C band, X band, Ku band, K band, Ka band, V band from 3 GHz to 50 GHz.

Features: Thin Film Filters are available in bandwidths from 3% to 70%, in configurations of 2 to 11 sections. Filters are available in a Q range of 250 to 750 with a connectorized interface and in bandpass, band reject, high pass, low pass, diplexer and multiplexer designs.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Applications

Due to its slim size and ability to minimize interference, MPG Thin Film Filters can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, SATCOM, telecom, SIGINT, aerospace, space, automated test equipment, navigation/GPS and data links.
