Suspended Substrate Fixed Band Reject Filters

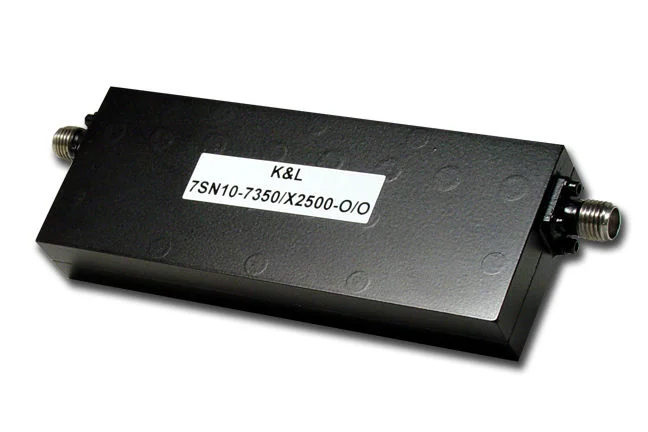

MPG_KLM_FL_BR_FIX_SS_MUL_7SN10-7350-X2500-O-O

Overview

Suspended Substrate Filters by MPG combine high Q factor and low-loss performance into a durable and temperature stable small package.L band, S band, C band, X band, Ku band, K band, Ka band and V band in bandpass, band reject, bandpass, high pass, low pass, diplexer and multiplexer designs.

Frequency Range: 1 to 120 GHz

Bandwidth: 50% to 100%

Find Products Catalog

Product Specifications

3 dB Cutoff (GHz)	Passband @ ≤ 1 dB (GHz)	Vibration	Shock	**Dimensions Inches / mm
3 dB Cutoff (GHz)	Passband @ ≤ 1 dB (GHz)	Vibration	Shock	L	W	H
2	DC - 1.8	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	2.0/50.8 1	1.5/38.1	0.5/12.7
3	DC - 2.7	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.9/48.3	1.3/33.0	0.5/12.7
4	DC - 3.6	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.8/45.7	1.0/25.4	0.5/12.7
5	DC - 4.5	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.5/38.1	1.0/25.4	0.5/12.7
6	DC - 5.4	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.3/33.0	0.9/22.9	0.5/12.7
7	DC - 6.3	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.1/27.9	0.8/20.3	0.5/12.7
8	DC - 7.2	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.1/27.9	0.75/19	0.5/12.7
9	DC - 8.1	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.1/27.9	0.75/19	0.5/12.7
10	DC - 9	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.0/25.4	0.7/17.8	0.5/12.7
11	DC - 9.9	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.0/25.4	0.7/17.8	0.5/12.7
12	DC - 10.8	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	1.0/25.4	0.65/16.5	0.5/12.7
13	DC - 11.7	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	0.9/22.9	0.65/16.5	0.5/12.7
14	DC - 12.6	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	0.9/22.9	0.65/16.5	0.5/12.7
15	DC - 13.5	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	0.9/22.9	0.6/15.2	0.5/12.7
16	DC - 14.4	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	0.9/22.9	0.65/16.5	0.5/12.7
17	DC - 15.3	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	0.9/22.9	0.65/16.5 0	0.5/12.7
18	DC - 16.2	10 G’s, 10 HZ 2000 Hz	20 G’s, 1/2 Sine, 11 Ms	.85/21.6	0.6/15.2	0.5/12.7

VSWR	2:1
Average Power (Watts)	15
Shape Factor (3 dB-30 dB)	1:3:1*
Temperature	-55 to +85°C
Relative Humidity	2:2:1/3:5:1

About The Technology

Suspended Substrate

Through the use of a photo-etched, copper clad substrate, Suspended Substrate Filters utilize air as the dielectric. The result is a filter capable of producing wide passbands and faster roll-off of stopbands.

The printed circuit technology used in our Suspended Substrate Filters also supports complex mechanical configurations by allowing other structures to be printed on the suspended substrate, including Combline Filters, Interdigital Filters, Hairpin Filters and Bandstop (Notch) Filters. Highpass and lowpass Suspended Substrate Filters can also be interconnected to create broadband bandpass filters or diplexers.

The durable construction of the Suspended Substrate Filter can be customized to meet all relevant military specifications, including those for vibration, since the interior walls in the housing are designed to hold the circuit and prevent movement.
