QFN Packaged Band Pass Filters

QB Series

Overview

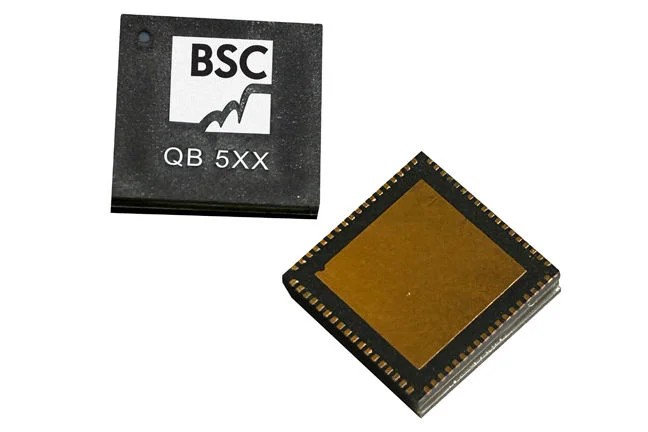

MPG’s Quad Flat No-Lead Package (QFN) Filter fulfills the current market demand for a low cost, high performance bandpass filter, capable of meeting the space requirements common to the semiconductor and telecom industries. Bespoke designs and tunable optioms are available upon request, as a 10mm or 12 mm unit and is fabricated to reduce lead inductance.

Frequency Range: 1.5 GHz to 24 GHz

Bandwidth: 4% to 15%

Find Products Catalog

QFN Band Pass Table

Part Number	Fc-MHZ	BW-MHz	Low Rejection	Level dB	High Rejection	IL	SIZE (MM?)
QB 517	9500	5000	5000	40	14000	3.5	10x10
QB 518	11300	1030	1030	20	12500	3.5	10x10
QB 519	13681	1000	1000	40	17000	4	10x10
QB 520	8197.5	8197.5	345	35	9000	4	10x10
QB 521	9300	9300	600	35	10300	4.5	10x10

About The Technology

QFN Packaged

Product Inquiry

Featured Brand

BSC

Features & Specifications

Based on a comprehensive history of designing and manufacturing RF interference mitigation products, our Quad Flat No-Lead Package (QFN) Filters are built utilizing the best technological advances of the last decade. We focus on meeting customer requirements for design, safety and cost while maintaining the small package size expected in a QFN product.

Quad Flat No-Lead Package (QFN) Filter frequency: From 1.5 GHz to 24 GHz (L band, S band, C band, X band, Ku band, K band)

Quad Flat No-Lead Package (QFN) Filter features: QFN Filters are available in bandwidths from 4% to 10%, in low loss configurations, different numbers of sections depending on rejection bandwidth needed.

Benefits

MODULAR

SWaP

CUSTOM DESIGN

Application

Quad Flat No-Lead Package (QFN) Filters offer durable performance in a cost-effective small package, they can fit a wide range of applications, including those in the following markets: defense, EW, RADAR, communications, and SATCOM.
