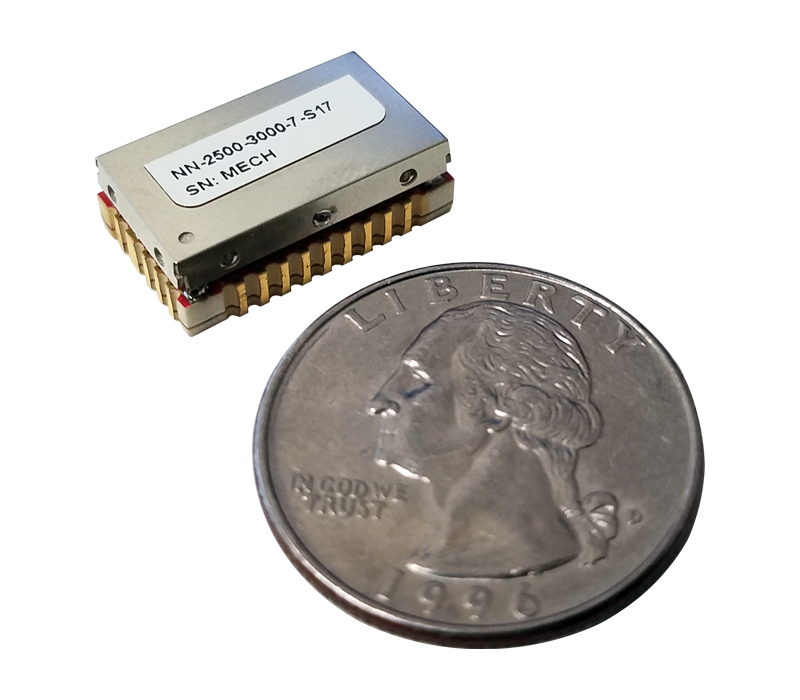

Pole/Zero has released the next generation line of NANO-POLE®
tunable bandpass filters, which flaunts a smaller package and higher power:
- +30 dBm in-band power handling: for BW3dB filters ≥ 7%. +27 dBm for 5% filters. +23 dBm
for 3% filters - +42 dBm IIP3 typical
- 10 µs typical tune time
- 15 dBc typical selectivity at 𝑓 𝑐 ±10%: 5%, 3% filters provide more selectivity; yet have higher
insertion loss. - 4 dB typical insertion loss for BW3dB filters ≥ 7%
- +3.0 V @ 3.5 mA typical
- 0.78” x 0.47” x 0.3” (20 mm x 12 mm x 7.62 mm
- For optimum filter performance, 1.5:1 tuning ratios are recommended
