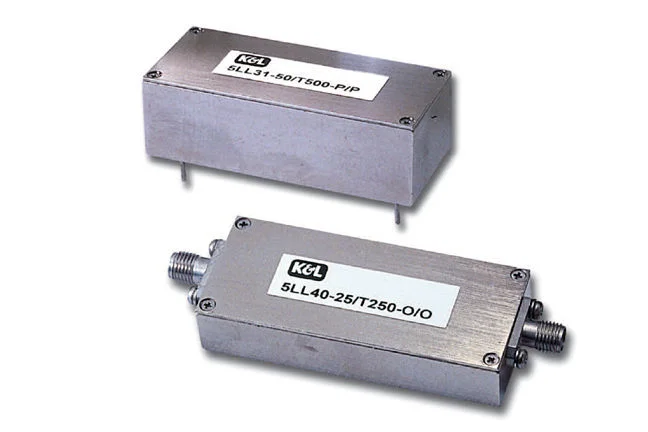

LL Series

Low Pass Lumped Component

Overview

Covers the 0.1 MHz to 2500 MHz MHz Frequency Range
Designs Available in 2-10 Sections
Low Insertion Loss
0.05 dB Chebyshev Response
Small, Ruggedized Package
Custom Designs Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Product Specifications

Model	Frequency (MHz)	VSWR	Average Power (Watts)	Impedance (Ohms)*	No. of Sections	Environmental Specs
Model	Frequency (MHz)	VSWR	Average Power (Watts)	Impedance (Ohms)*	No. of Sections	Shock	Vibration	Temperature	Relative Humidity
LL30	2.5-150	1.5:1	15	50	2-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%
LL40	10-200	1.5:1	10	50	2-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%
LL50	0.1-10	1.5:1	20	50	2-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%

Please see the Lumped Component Catalog (in above menu) for more information.

Series Outlines

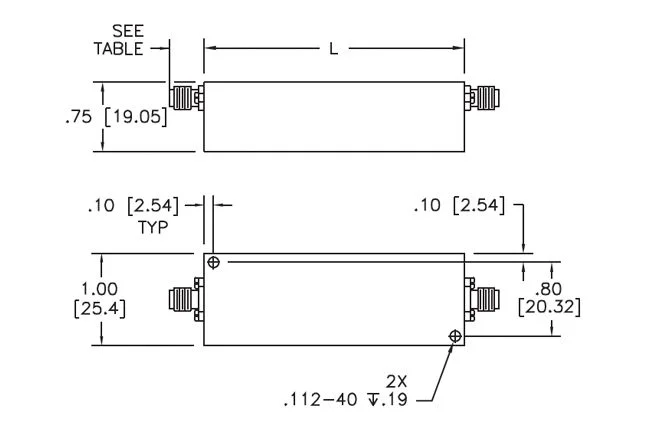

Package Style 3

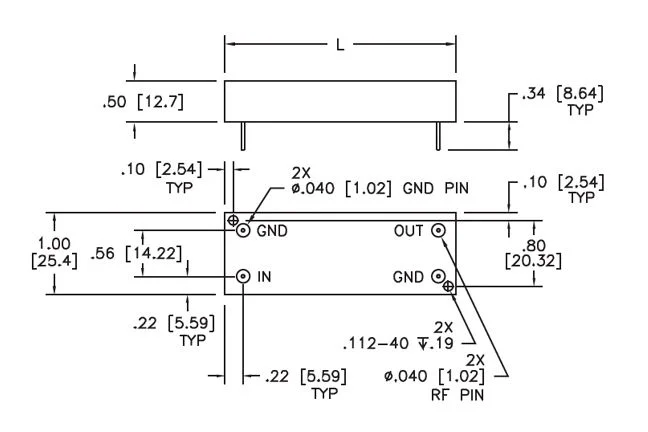

Package Style 4

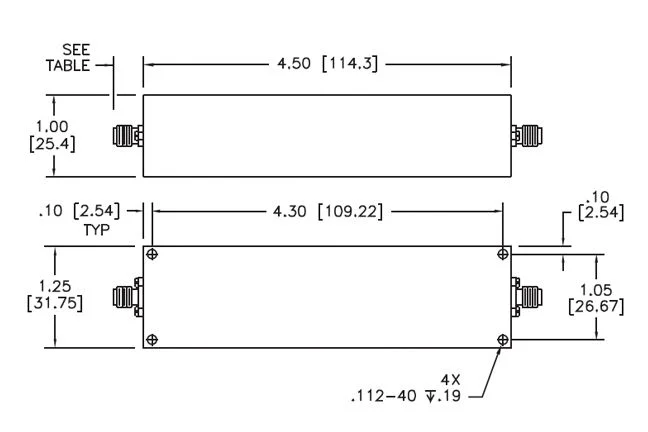

Package Style 5 A

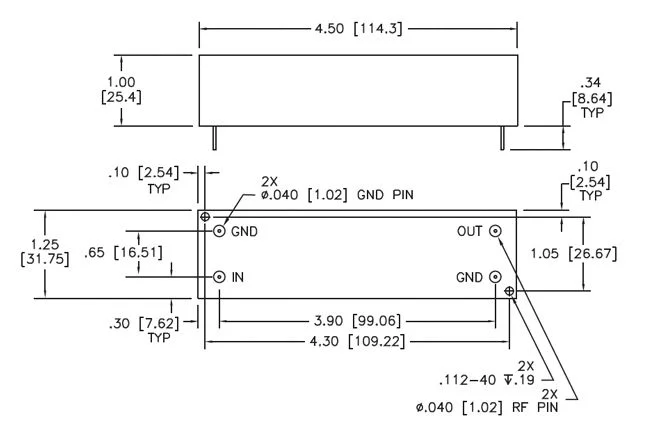

Package Style 5 B

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space
