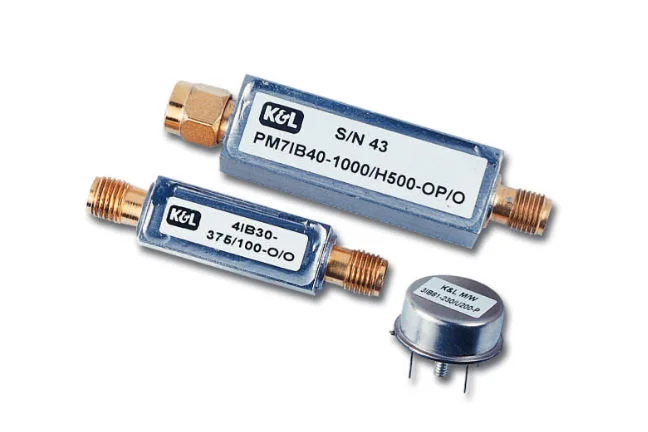

IB Series

Band Pass Lumped Component

Overview

Small, Compact Package
Covers the 30 MHz to 6 GHz Frequency Range
Standard 3 dB BW Available from 3-15%
3 dB BW also Available up to 70% (Contact Factory)
Designs Available in 3-10 Sections
0.05 dB Chebyshev Design
Ruggedized Package
Custom Designs Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Product Specifications

Frequency (MHz)	3 dB % BW	VSWR	Average Power (Watts)	Impedance (Ohms)*	No. of Sections	Environmental Specs
						Shock	Vibration	Temperature	Relative Humidity
30-6000*	3-70	1.5:1	1	50	2-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%

* Certain combinations of frequency and bandwidth are not practical. Contact Factory with your requirements.

Please see the Lumped Component Catalog (in above menu) for more information.

IB SERIES OUTLINES

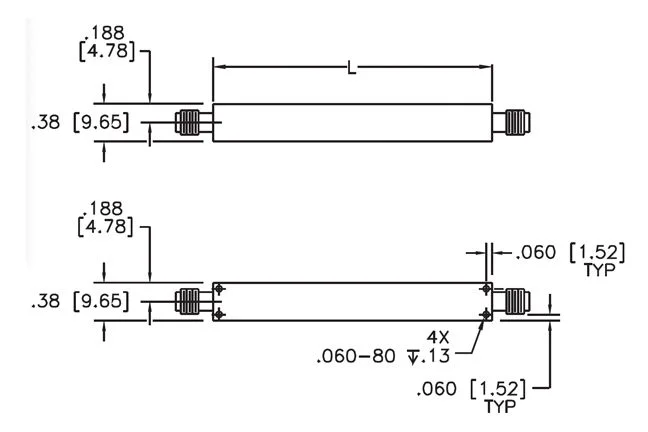

Package Style 3 A

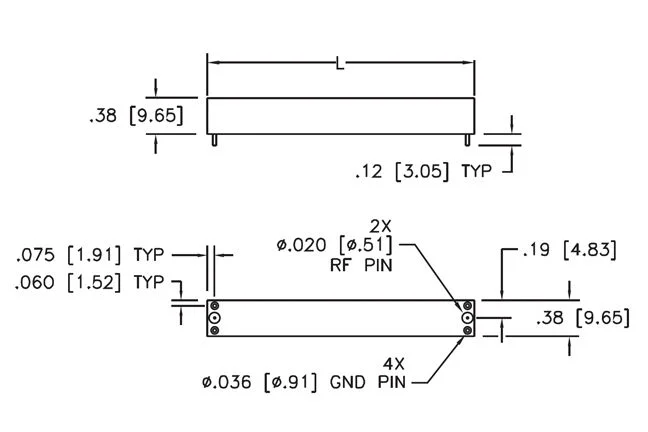

Package Style 3 B

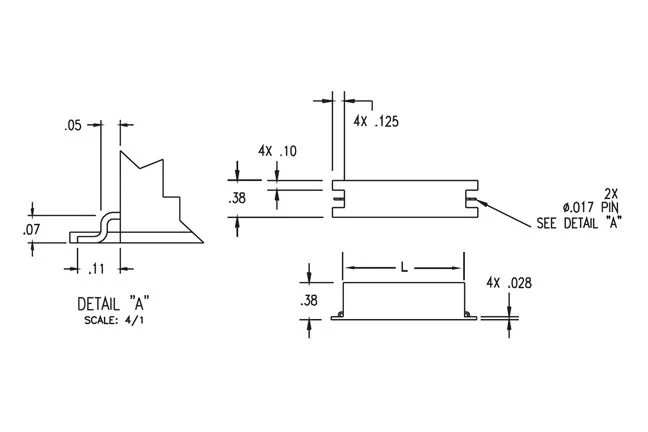

Package Style 3 C

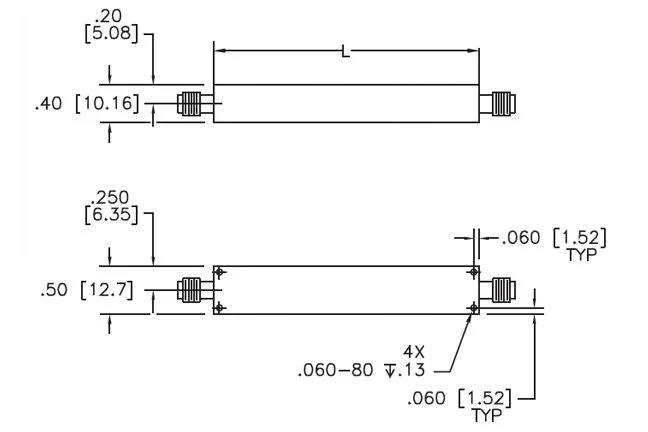

Package Style 4 A

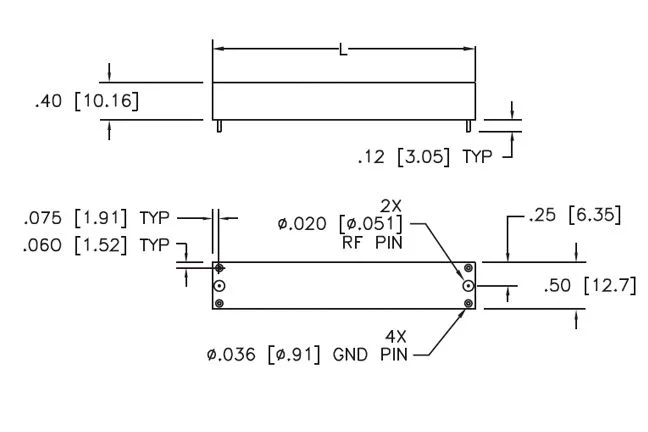

Package Style 4 B

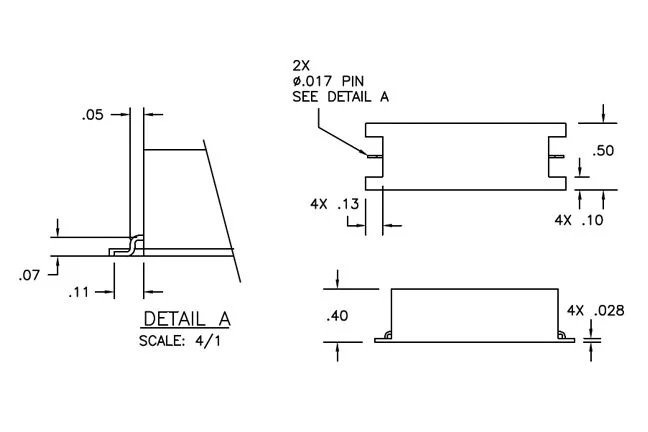

Package Style 4 C
