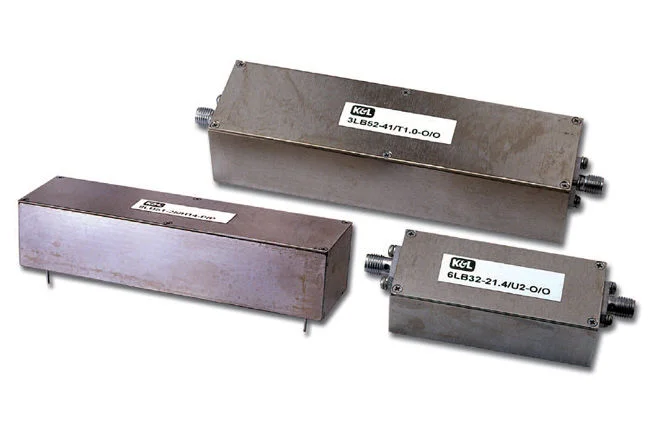

LB Series

Band Pass Lumped Component

Overview

Covers the 0.5 MHz to 200 MHz Frequency Range
3 dB BW Available from 1-200%
Designs Available in 3-10 Sections
Low Insertion Loss
0.05 dB Chebyshev Response
Small, Ruggedized Package
Custom Designs Available

MODULAR

SWaP

CUSTOM DESIGN

Request For Quote

Product Specifications

Model	Frequency (MHz)	3 dB % BW	VSWR	Average Power (Watts)	Impedance (Ohms)*	No. of Sections	Environmental Specs
Model	Frequency (MHz)	3 dB % BW	VSWR	Average Power (Watts)	Impedance (Ohms)*	No. of Sections	Shock	Vibration	Temperature	Relative Humidity
LB30	5-150	3-50 / 50-200	1.5:1 / 1.7:1	15	50	3-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%
LB40	15-200	3-50 / 50-200	1.5:1 / 1.7:1	10	50	3-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%
LB50	0.5-200	3-50 / 50-200	1.5:1 / 1.7:1	20	50	3-10	20 G’s, 1/2 Sine, 11ms	10 G’s, 10 Hz-2000 Hz	-55 to 85° C	0-95%

Please see the Lumped Component Catalog (in above menu) for more information.

L Series Outlines

Package Style 3 A

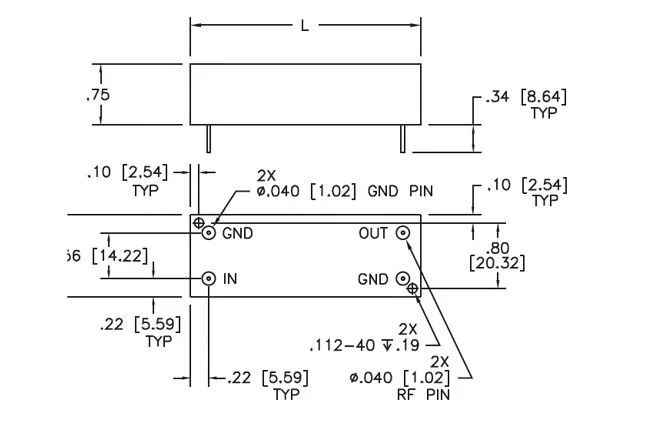

Package Style 3 B

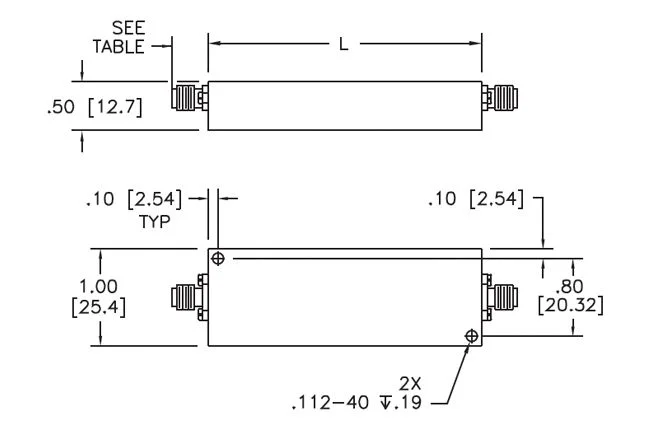

Package Style 4 A

Package Style 4 B

Package Style 5 A

Package Style 5 B

Applications

Due to the innovative and customizable nature of K&L Lumped Element Filters, they can fit a wide range of applications, including those in the following markets: defense, EW, radar, communications, satcom, telecom, SIGIN, aerospace, space, automated test equipment, navigation/GPS and data links.

Markets

Defense Aerospace Communications GPS ATE Space
